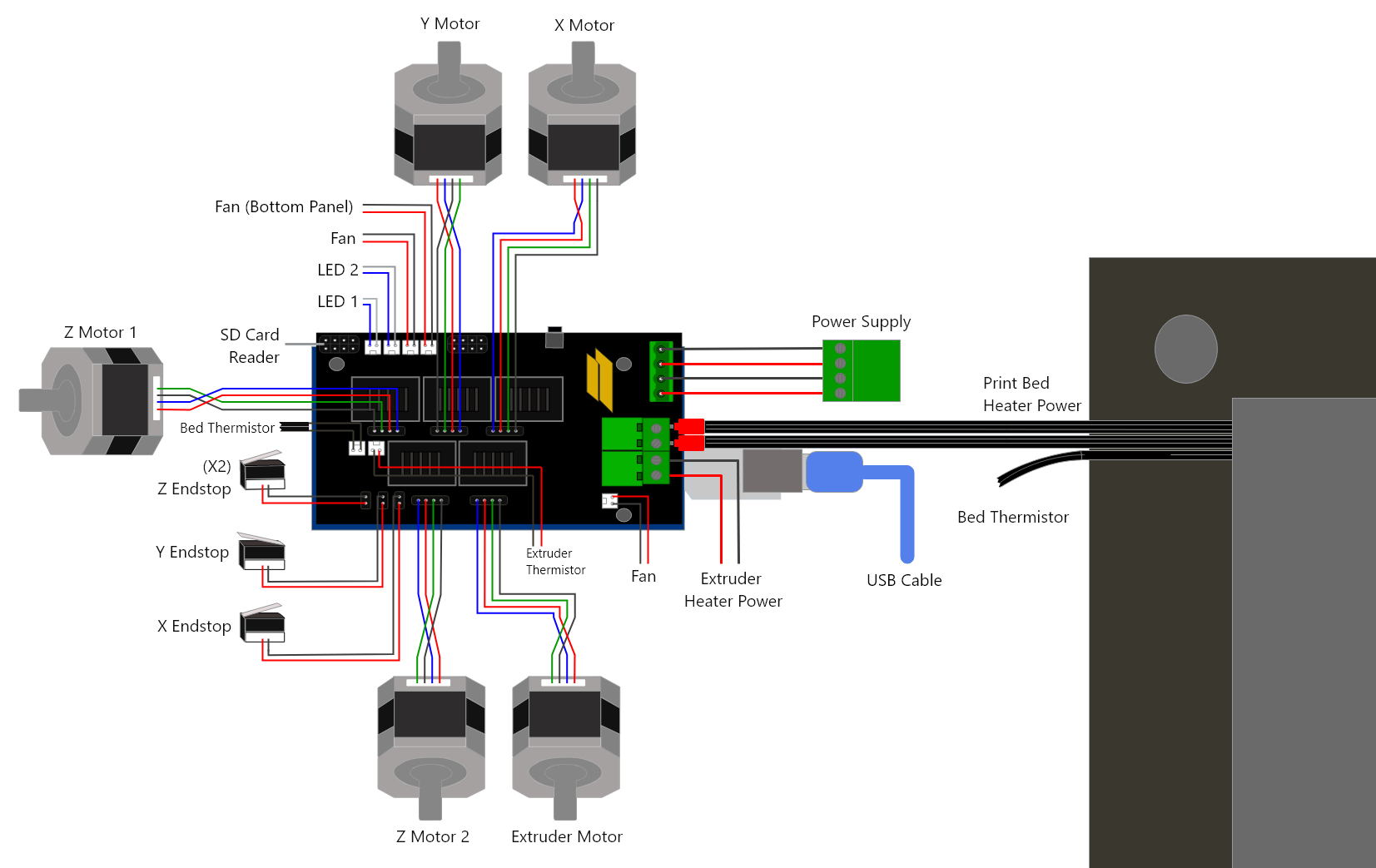

R1+ RAMPS Board Wiring Diagram RoboSupport August 28, 2023 06:49 Updated Follow Download here R1 RAMPS Board Wiring Diagram.png 100 KB Download Related articles Controls Misaligned R1+ Z-axis MatterControl Index Using an adhesive on the print bed Setting your Z-Offset Comments 3 comments Sort by Date Votes Chuck Glenn February 27, 2018 18:54 Edited For the board they just sent me (February 2018) the Z MOTOR 1 is backward from what is shown here. 0 Comment actions Permalink Joe Carusi February 08, 2019 16:40 Agree 0 Comment actions Permalink Joe Carusi February 09, 2019 20:07 Edited I need to speak to a tech 815-280-9845 ask foe Joe 0 Comment actions Permalink Please sign in to leave a comment.
