Step 1) Using the Unclogging tool

1. Find the unclogging tool that came with your tool kit of the E3 Pro 3d printer
2. Take the filament tube out of its location and set to the side
3. Preheat your nozzle and wait for it to heat up
4. Using the unclogging tool, firmly press down through the filament path and push out any excess filament that may be in the way of new filament trying to extrude
5. Now, try to load filament into the nozzle. If it does not seem to be unclogged, move to step 2

Unscrew the 3 Allen head screws on your extruder assembly to take off the extruder cover. Circled in red below:
Now, pull strait up on the black casing to reveal the extruder assembly.
On the right and left hand sides, just below the green electronics board, you will see two Allen head screws that you will need to unscrew. Pictures to show location below:
Now, once these 2 screws are unscrewed, you should be able to move the motor back with your hand

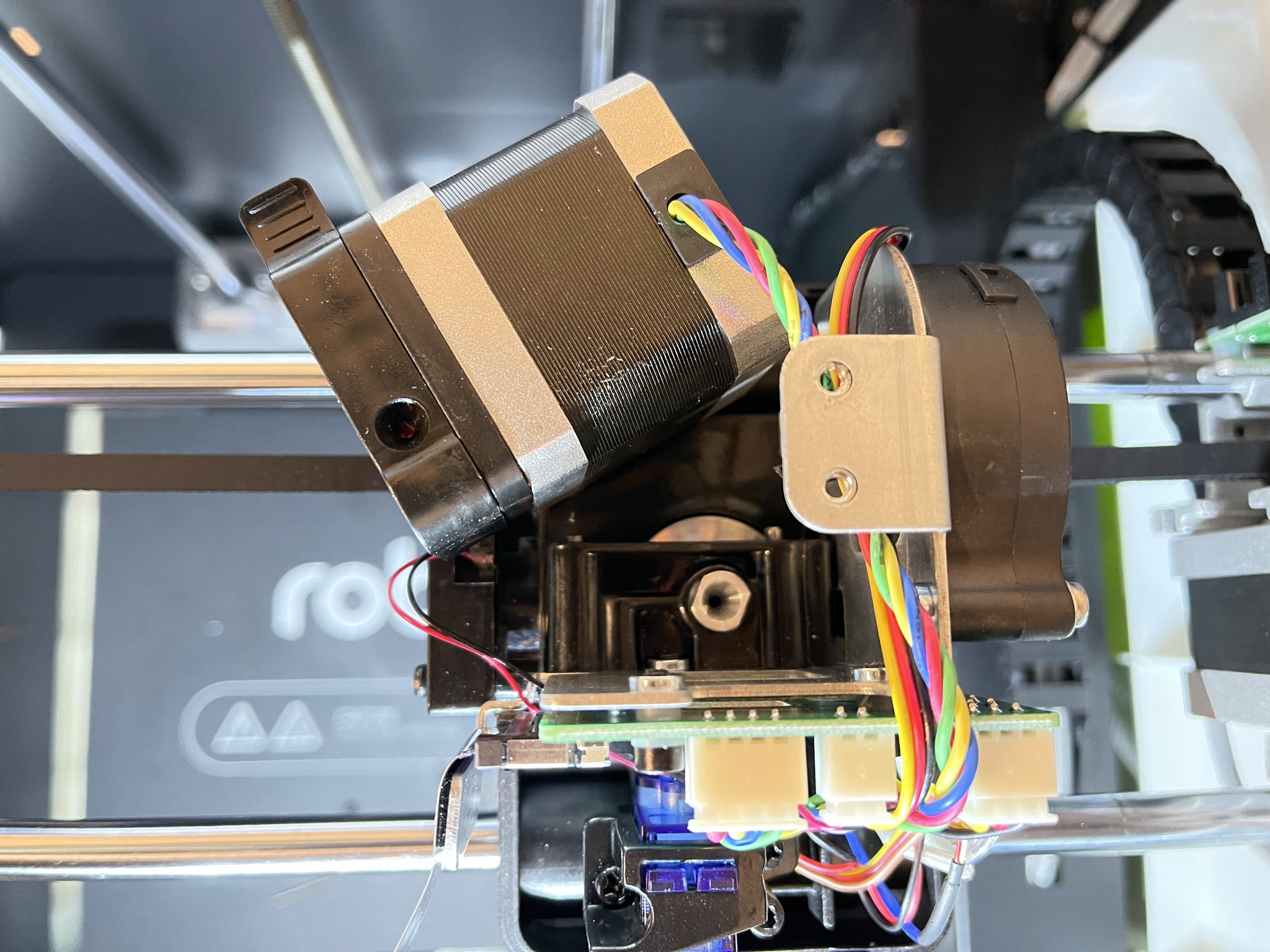

From here, you will be able to see the top of the nozzle, as well as inside the motor gear. There may be filament either stuck in the nozzle, which you can grab with some tweezers and pull out. Make sure to heat up the nozzle when trying to pull this out or push it through the nozzle to clear up.
1. It should look like this after filament has been removed.
There may also be filament stuck inside the motor drive gear like this. Take some tweezers and make sure you get this filament debris out of the way, which may be causing the blockage.
1. It should be clear of any debris after the filament is removed
Now, screw the motor in with the two screws from disassembly.
Slip the extruder cover back on and reattach it with the 3 screws.
Now, you should be all set and ready to print once again.
